Ubiquiti
Switch Enterprise Audio/Video Fiber
$3,749.00

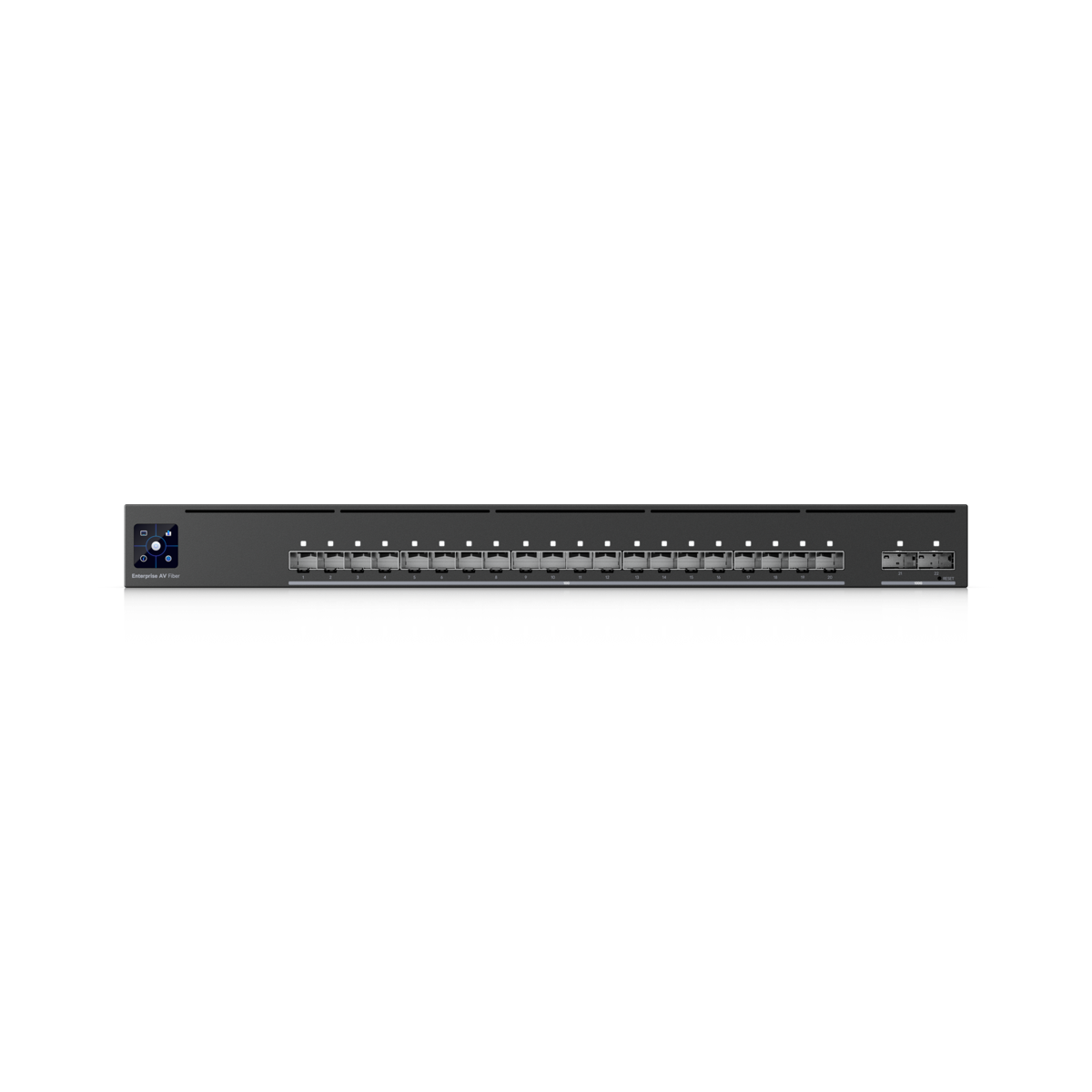

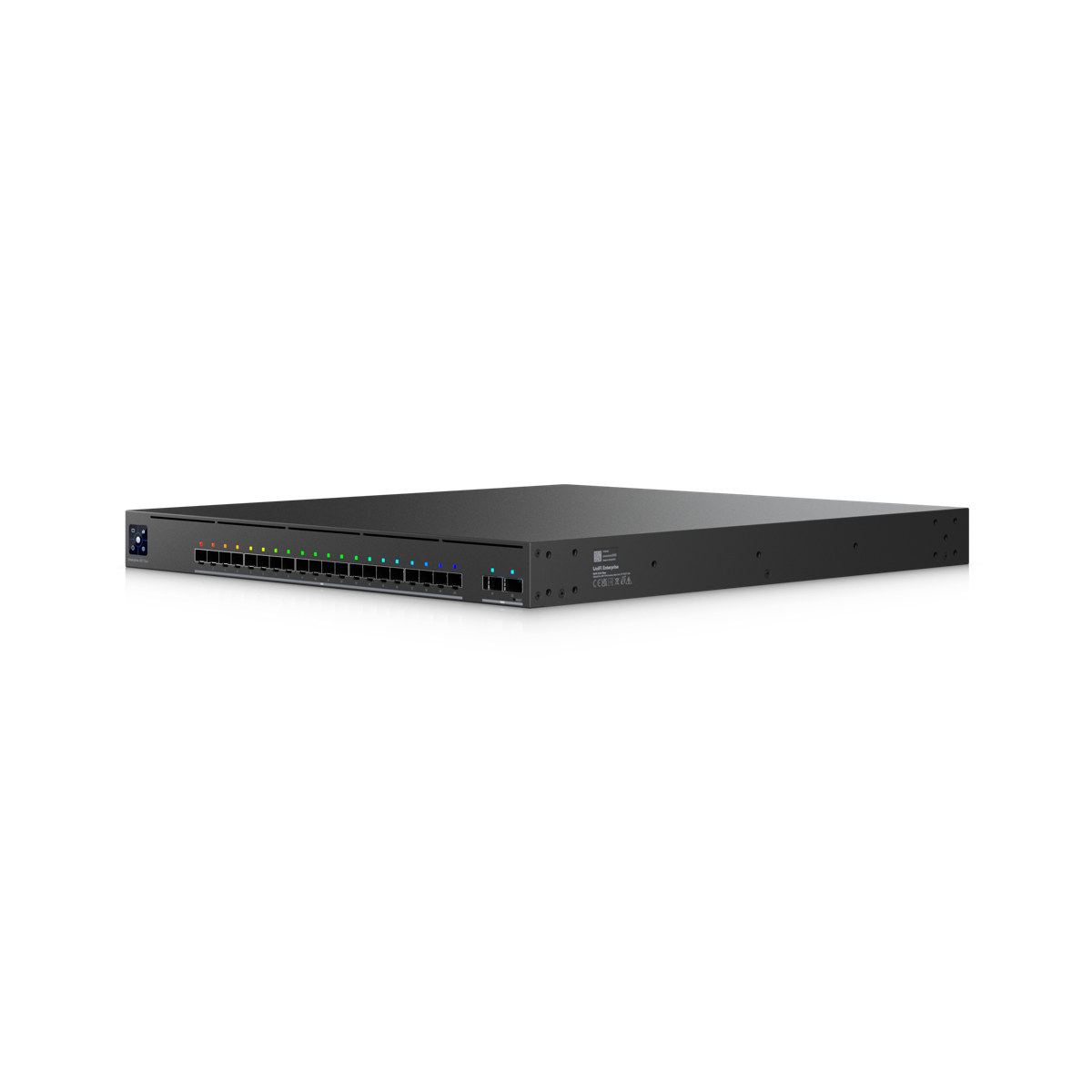

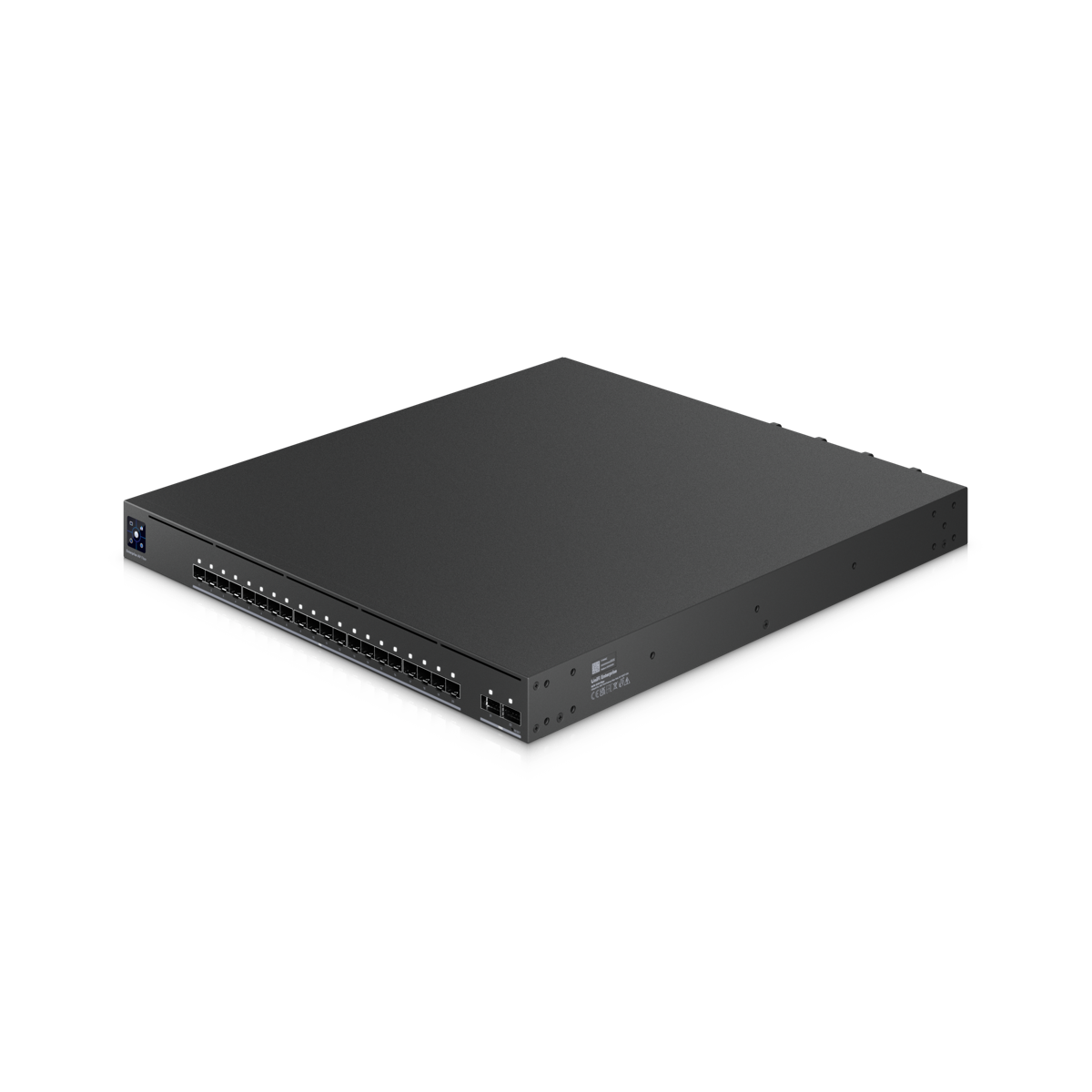

Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media syncing.
Call to order and we’ll have it ready for pickup in Lehi or on the truck for your install. Price is for the equipment; installation and programming are quoted separately.
Features
- Dimensions: 442.4 x 480 x 43.7 mm
- Weight: Without mounting brackets: 8.95 kg (19.7 lb)
- Form Factor: Rack Mount (1U, Full-Depth)
- Max. Power Consumption: 150W

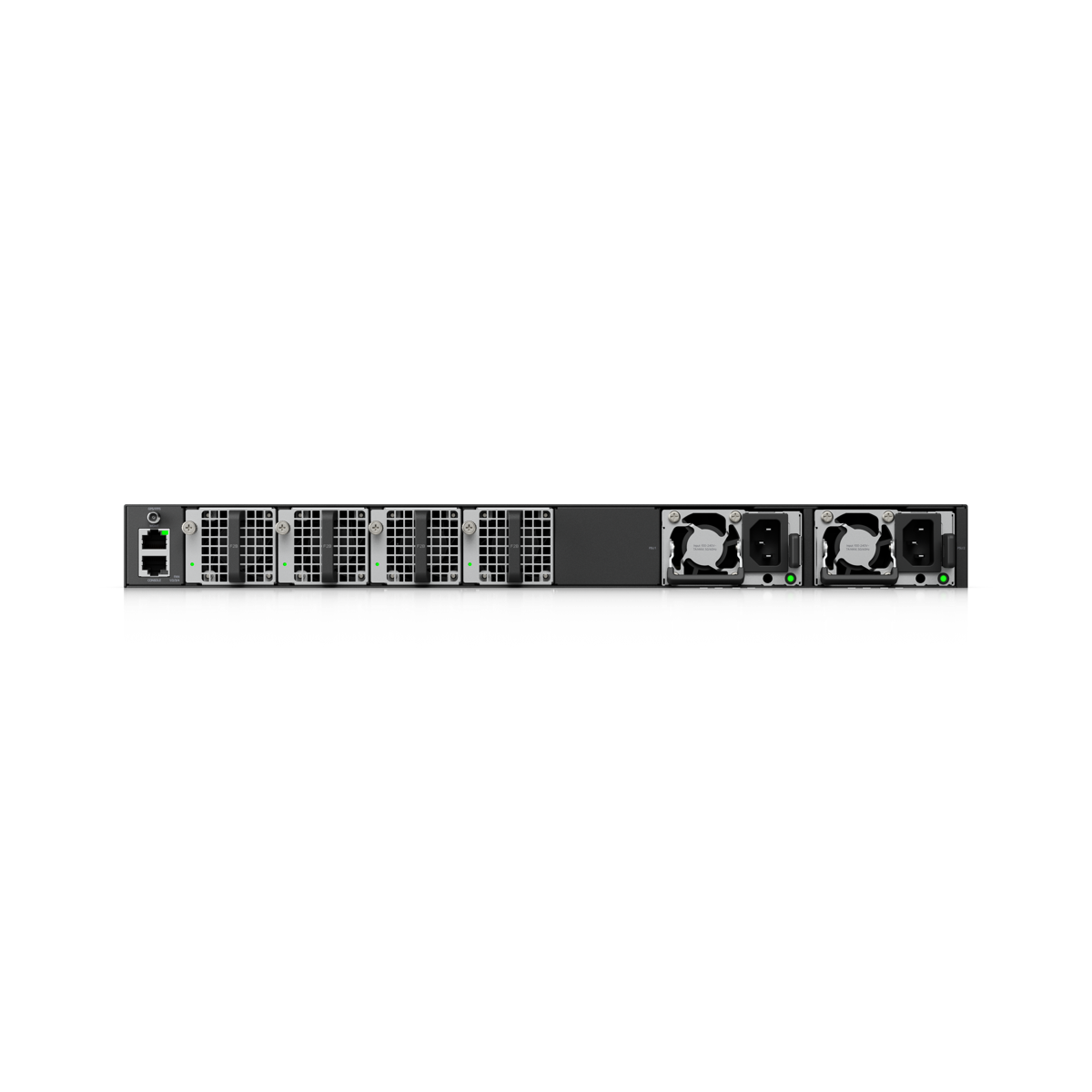

- Power Supply: (2) Hot-swappable AC/DC 150W power modules
- Switching Capacity: 800 Gbps
Details
Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.
Precision Time Protocol (PTP)
IEEE 1588-2008 PTPv2
Hardware timestamping on all Ethernet and QSFP28 ports
Clock roles: Grandmaster, Boundary Clock, and Transparent Clock
Boundary Clock operation: two-step only
Profiles: IEEE1588, SMPTE 2059-2, AES67, and AES-R16
End-to-End (E2E) delay mechanism
Layer 2 Ethernet and UDP/IPv4 transport
Custom profile configuration:
Sync, Announce, and Delay Request intervals from −3 to +4
Announce Receipt Timeout from 2 to 9
Configurable PTP domain number
BMCA with configurable Priority1 and Priority2
Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
EAV-Fiber was previously named EAV-Aggregation. This is a naming update only; no hardware changes have been made.
