Ubiquiti

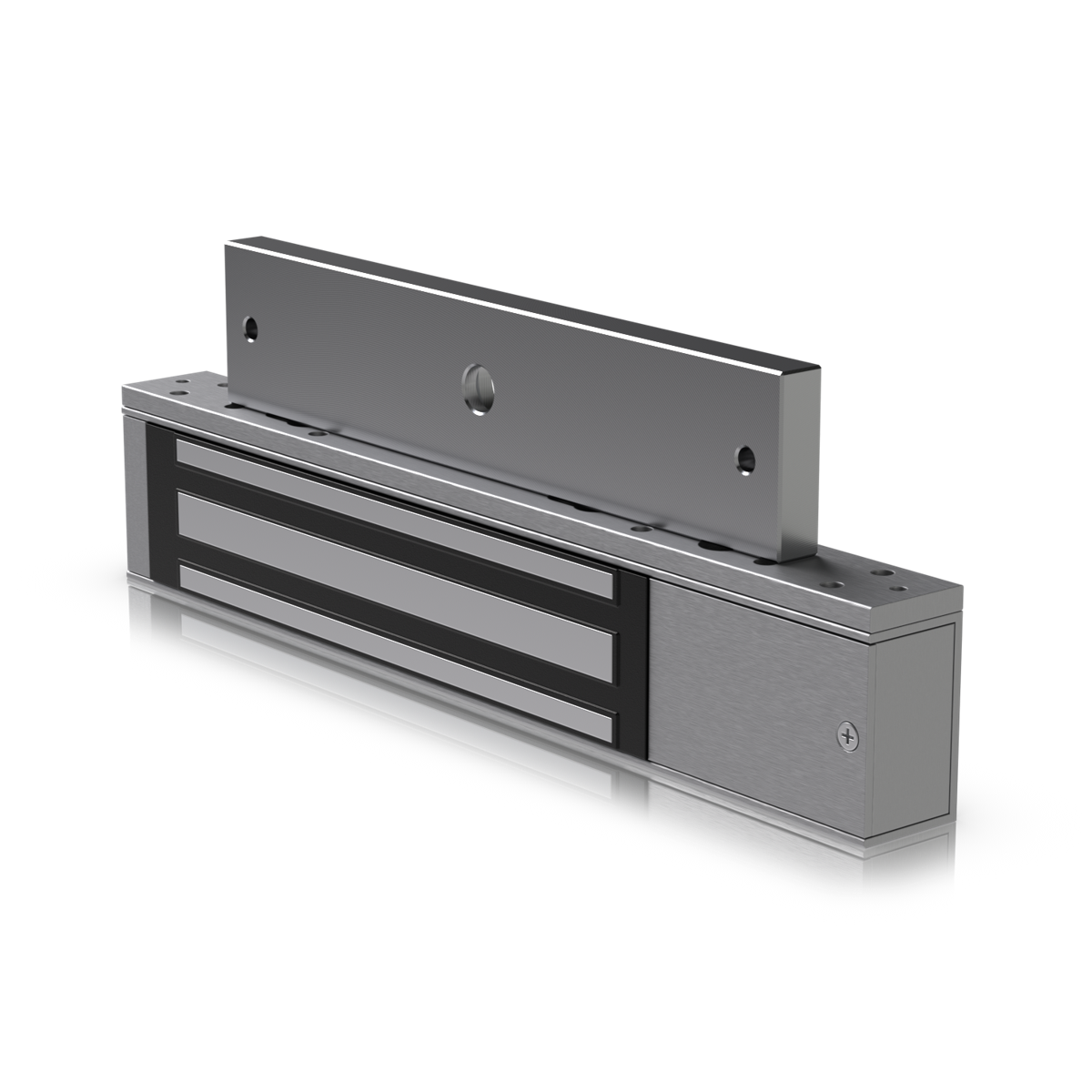

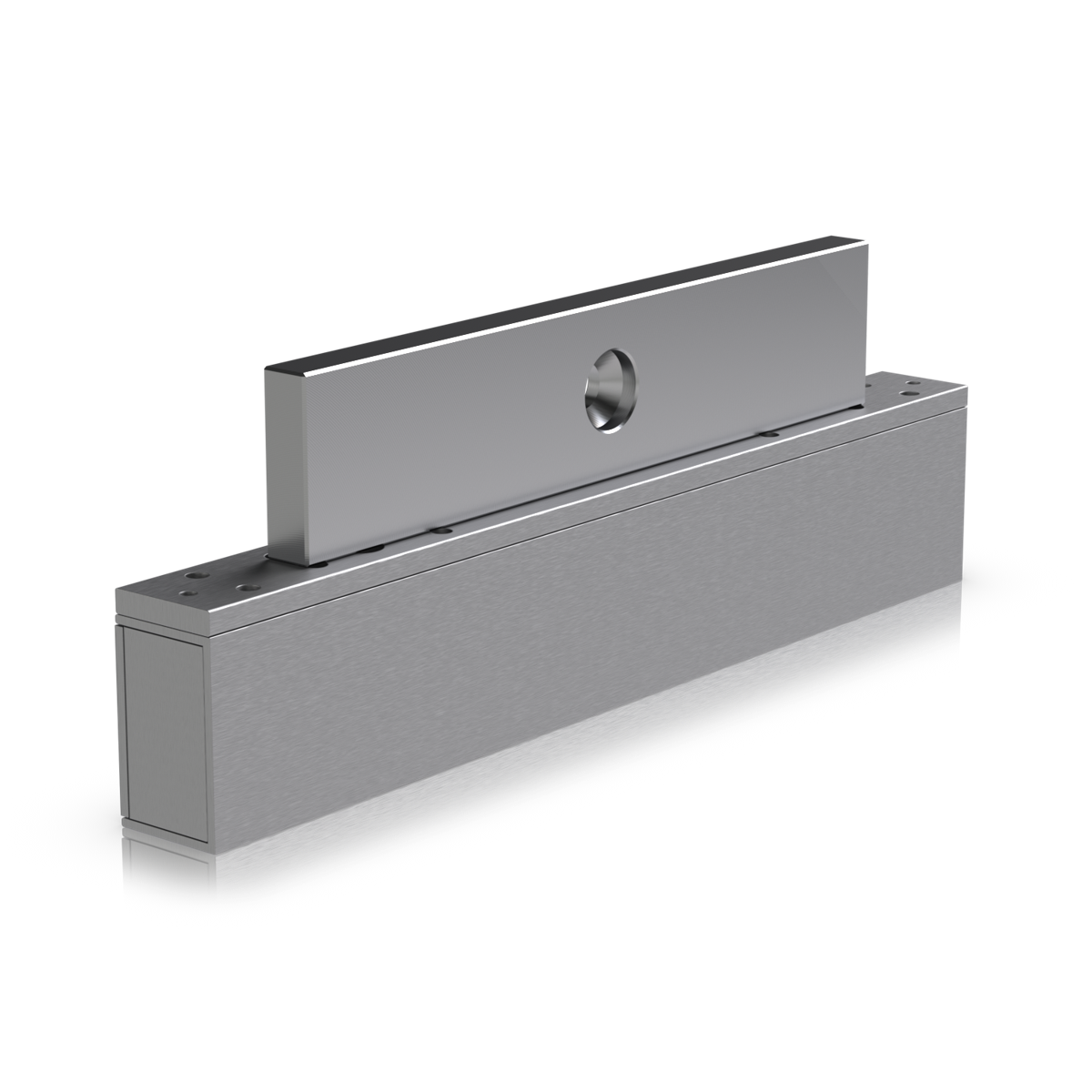

Access Magnetic Lock — 600 lb
$298.00
Holding Force: 600 lb
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Call to order and we’ll have it ready for pickup in Lehi or on the truck for your install. Price is for the equipment; installation and programming are quoted separately.
Features

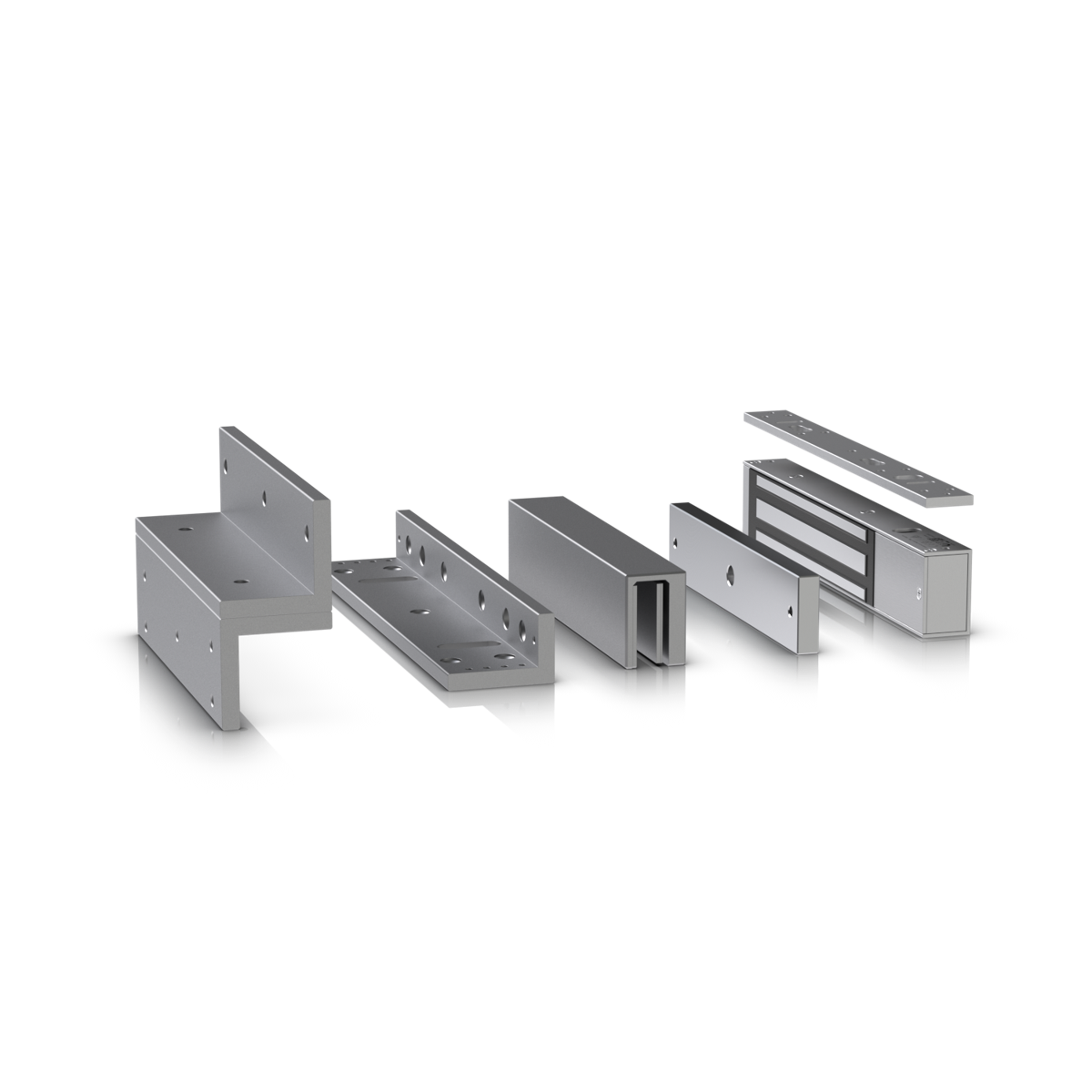

- Dimensions: UA-Lock-Magnetic-270kg; Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ); Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ); Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4"); ; UA-Lock-Magnetic-540kg; Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6"); Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2"); Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
- Weight: UA-Lock-Magnetic-270kg; Lock body: 1 kg (2.2 lb); Install plate: 70 g (0.15 lb); Armature: 600 g (1.3 lb); ; UA-Lock-Magnetic-540kg; Lock body: 2.9 kg (6.4 lb); Install plate: 145 g (0.3 lb); Armature: 1.4 kg (3.1 lb)
- Enclosure Material: Device/brackets: aluminum; Armature: steel
- Lock Type: Fail safe
- Support Door Type: UA-Lock-Magnetic-270kg: Single door ; (Wooden/metal/glass); ; UA-Lock-Magnetic-540kg: Single door ; (Wooden/metal)
- DPS: Embedded

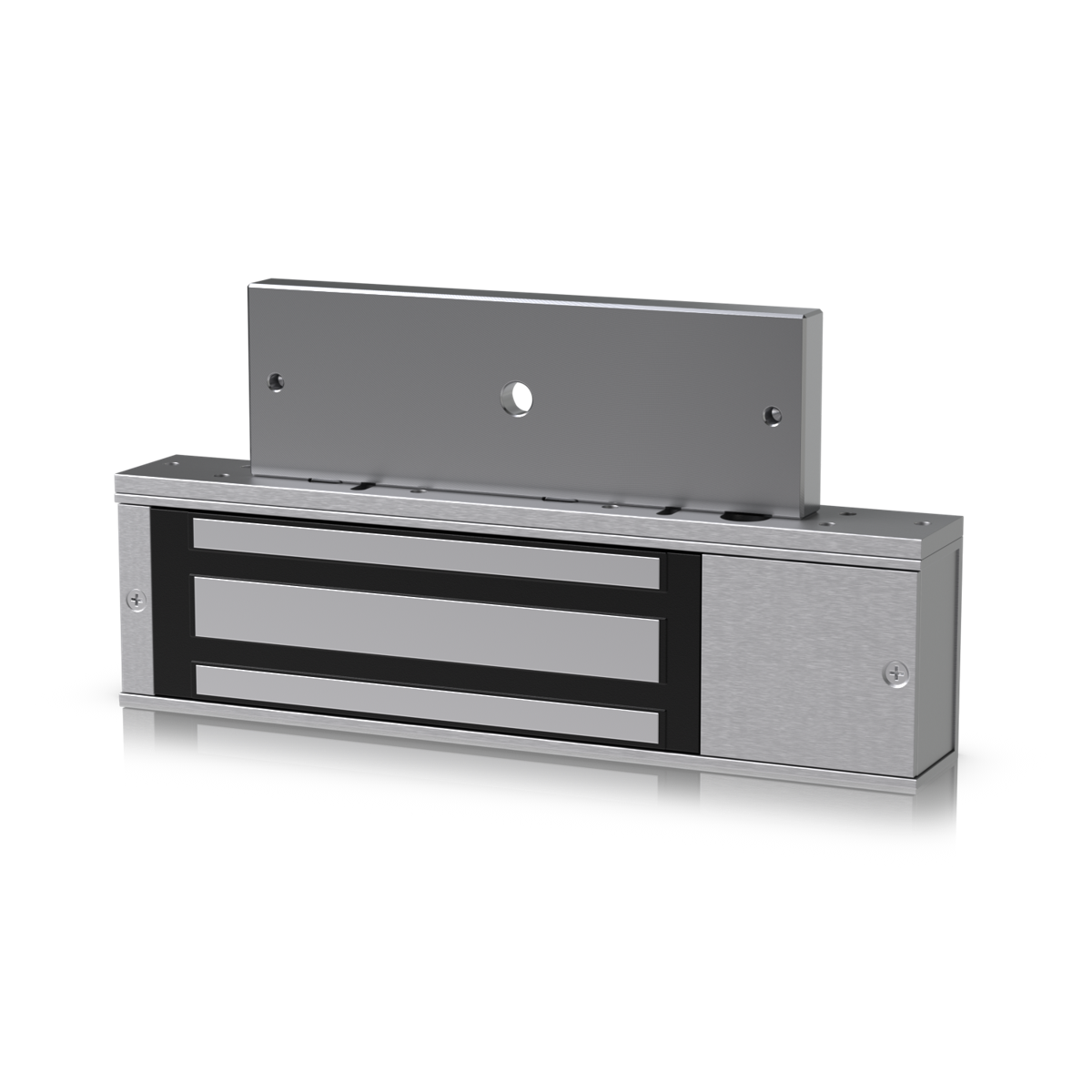

- Holding Force: UA-Lock-Magnetic-270kg: 270 kg (600 lb); ; UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
- Current Power: 500mA ±10%
Details
Professional installation available
